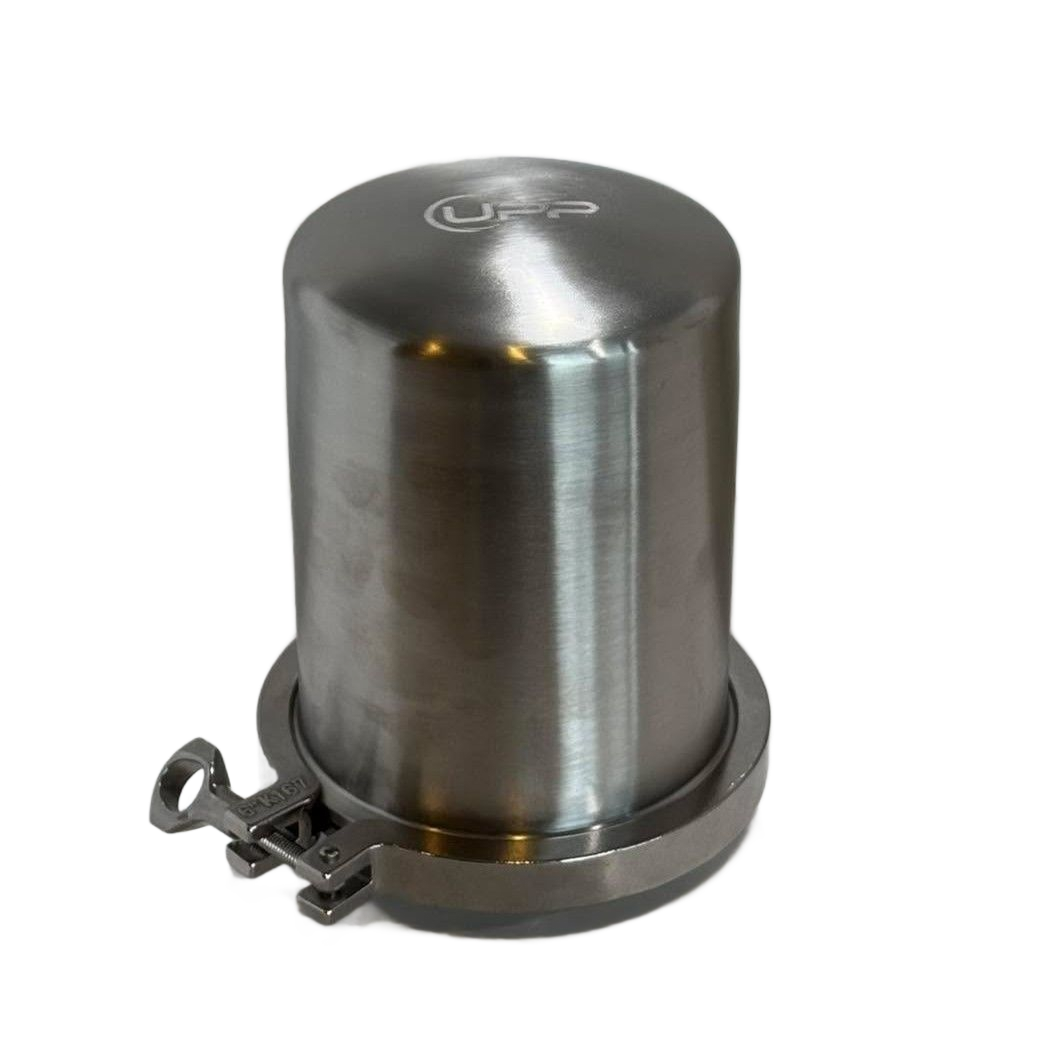

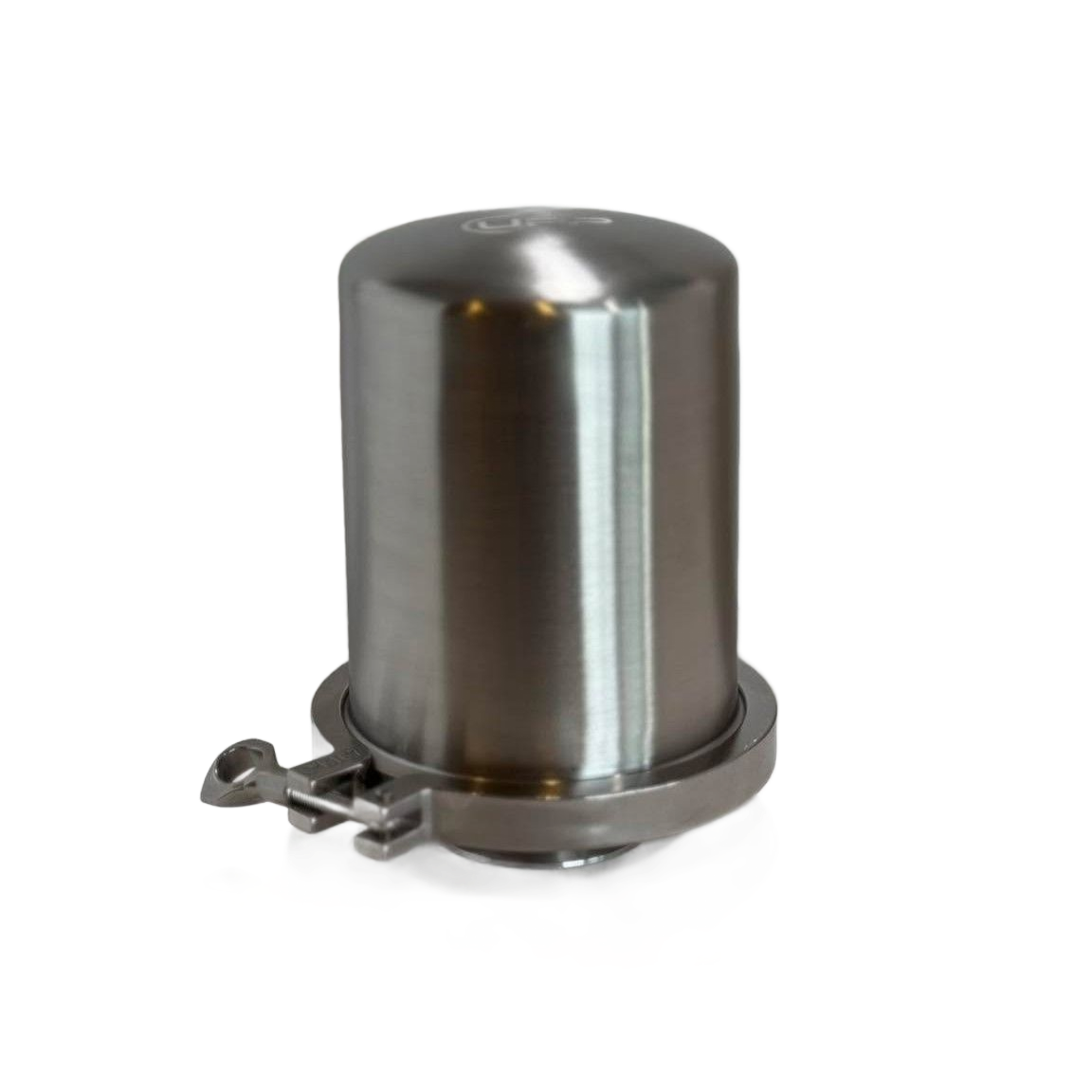

United Process Piping Shrouded Atmospheric Tank Vent
The United Process Piping Shrouded Atmospheric Tank Vent is designed for atmospheric storage tanks and process vessels requiring unrestricted airflow during filling and emptying operations. Constructed from heavy-duty stainless steel, the vent features a weather-protected hood design and integrated perforated screen to prevent the ingress of insects, debris, and foreign material while maintaining excellent airflow.
The vent incorporates twelve 3/4" diameter openings providing a total free vent area, exceeding the flow area of a standard 2.5" fill connection. This design allows the vent to accommodate the air displacement requirements of typical municipal-water tank filling operations while protecting product quality and tank integrity.
• 2", 3", 4" sanitary tank connection
• 316 stainless steel construction
• Weather-resistant hooded design
• Internal perforated insect/debris screen
• Twelve 3/4" vent openings
• 75% of vent connection size
• Suitable for atmospheric tanks and low-pressure process vessels

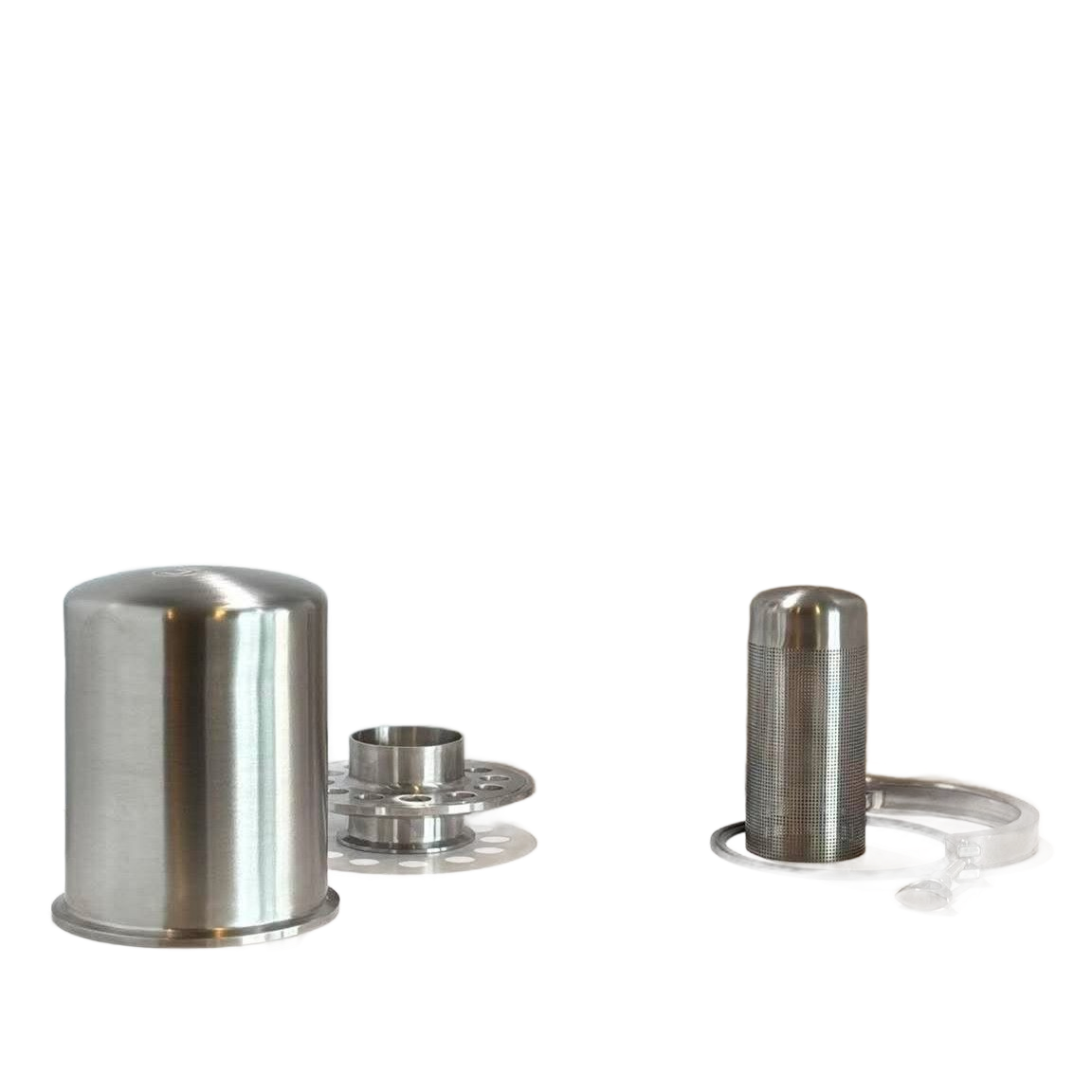

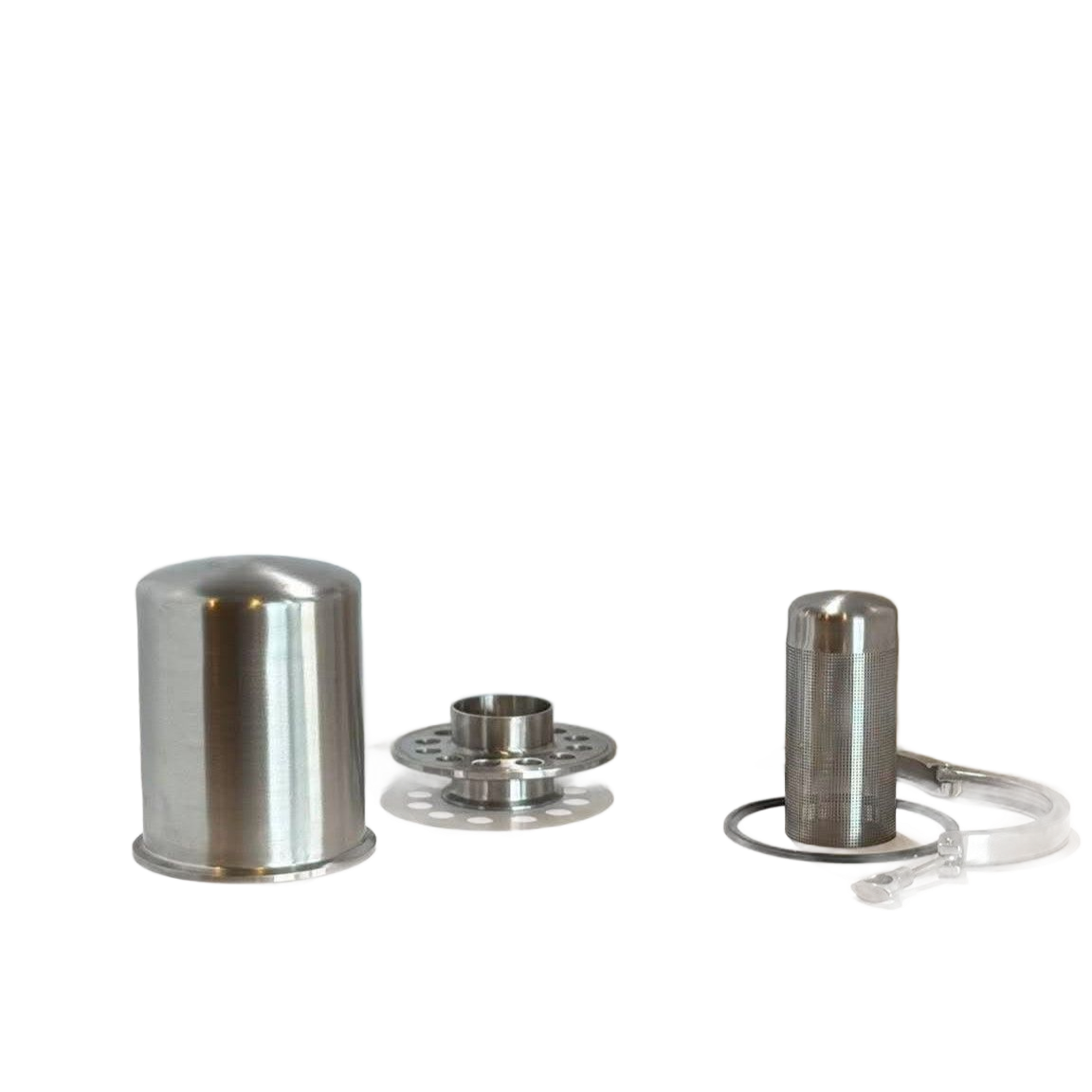

• Removable construction for cleaning and inspection
• Suitable for indoor or outdoor applications
• Process water tanks
• Ingredient storage tanks
• CIP solution tanks
• Food and beverage processing vessels
• Agricultural and industrial atmospheric storage tanks, etc.
• Total vent area: 75% of vent connection size
• Designed to minimize pressure/vacuum formation during filling and emptying.
